Application of Keithley in 2D Metal Material Research

Explore how Keithley is applied in 2D metal material research—from electrical conductivity tests to device fabrication, complete with real lab cases and popular model recommendations.
Application of Keithley in 2D Metal Material Research

Application of Keithley in 2D Metal Material Research: In-Depth Exploration and Cutting-Edge Technology Insights

Overview of 2D Metal Materials

Definition and Characteristics of 2D Materials

2D metal materials are ultra-thin films consisting of a single atomic layer. Their distinctive properties include:

  • Ultra-thin and flexible structure

  • Pronounced quantum confinement effects

  • Fully exposed surface atoms with high activity

  • Excellent conductivity enabling nanoscale transport

Common Examples of 2D Metal Materials

Here are some research hotspots:

MaterialDescriptive Characteristics
GrapheneHigh conductivity, high thermal conductivity
MoS₂ (Molybdenum disulfide)Semiconductor properties, tunable bandgap
NbSe₂ (Niobium diselenide)Metallic superconductivity
Ti₃C₂ (MXene materials)High surface area, tunable functional groups

These materials are widely applied in field-effect transistors, photodetectors, and flexible electronics.

What is Keithley Instrumentation?

Introduction to the Keithley Brand

Keithley Instruments is a world-leading manufacturer of electronic measurement equipment. Since its establishment in 1946, the company has been committed to providing precision electrical testing solutions for scientific research and engineering development. Now part of Tektronix, Keithley is widely recognized for its authority in measuring extremely low current, voltage, and resistance.

Core Products and Technological Advantages

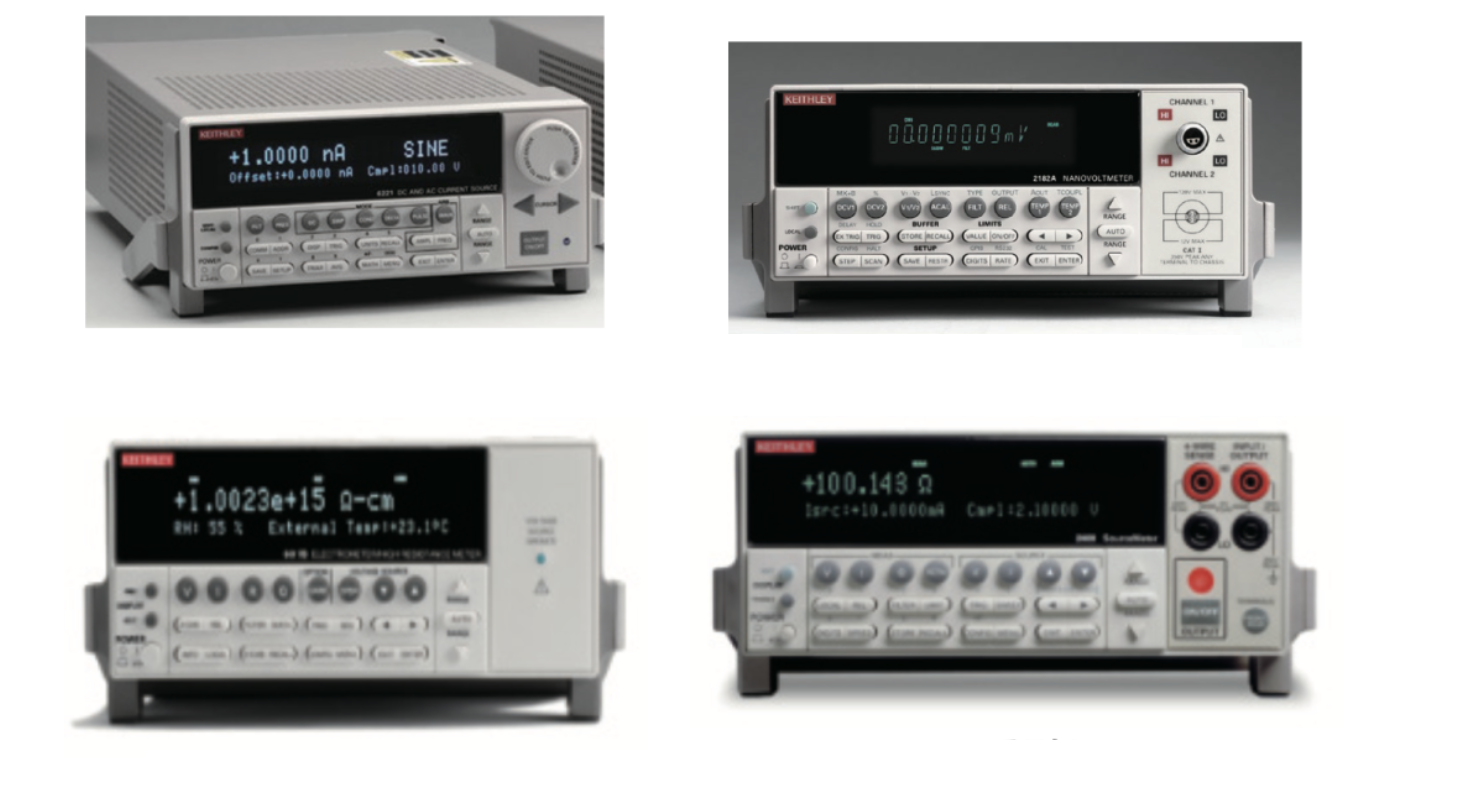

Keithley’s core product lineup includes:

  • Source Measure Units (SMU)

  • Digital Multimeters (DMM)

  • Nanovoltmeters and Picoammeters

  • High-resistance meters and switch systems

Key advantages of Keithley instruments:

  • Ultra-high measurement sensitivity (picoamp-level current, nanovolt-level voltage)

  • Low noise interference design

  • Multi-channel integrated control capability

  • High stability suitable for long-duration experiments

These features make Keithley the go-to choice for researchers in 2D material studies.

Role of Keithley Devices in Material Testing

Importance of Precise Current-Voltage Measurements

Research in 2D materials demands highly precise detection of weak electrical signals. For instance, when measuring the conductivity of a single-layer graphene device, the transmitted current can be at the picoampere level—beyond the capability of standard test equipment.

Keithley’s SMU units not only provide a stable voltage source but also simultaneously detect weak current responses, which is critical for capturing accurate I-V curves of materials.

Advantages of Low Noise and High Sensitivity

2D material measurements are extremely sensitive to environmental noise. To address this, Keithley instruments incorporate:

  • Shielded input channels

  • Precision time-based filtering technology

  • Automatic zero calibration

These features significantly enhance data stability and repeatability, offering researchers a highly reliable experimental foundation.
